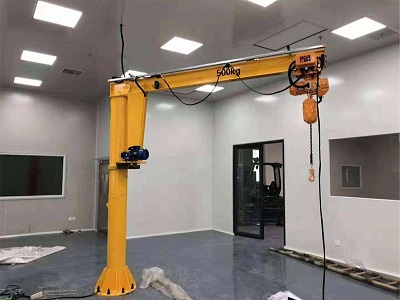

Column I-Beam Electric Jib Crane

The column I-beam electric jib crane is a small and medium-sized lifting equipment with compact structure and easy operation. It combines key components such as columns, I-beam jibs and electric hoists to realize the lifting and rotation of heavy objects through electric drive, achieving flexible and efficient material lifting operations.

The structure of I-beam jib crane

  ● Column: It is the main support structure of the jib crane. It is usually made of circular tubes. The base plate and the rotating shaft are welded at both ends, and the waist track is installed on the upper part. The base plate is fixed to the cement floor through chemical bolts to ensure the stability of the crane.

  ● Swing arm: Composed of I-beam or H-shaped steel, it is the main load-bearing component of hoisting operations. It is installed on the top of the column and rotates 360 degrees through a swivel device. Tracks are installed on the swing arm for moving the electric hoist.

  ● Rotating device: It is located between the column and the swing arm. It uses a round tube as the shell and a spherical roller bearing installed inside to realize the free rotation of the swing arm. The device is also equipped with a rotation limiter to limit the rotation angle of the swing arm.

  ● Electric hoist: Installed on the track of the swing arm, it is driven by the motor to lift and lower heavy objects. It is the lifting mechanism of the jib crane and has the characteristics of compact structure and easy operation.

  ● Power distribution system: Provides power support for the jib crane, including cables, controllers and other components. Cables are often hidden within the uprights to maintain a neat appearance and prevent damage.

Performance characteristics of electric I-beam jib crane

  ● It adopts electric drive mode and has the characteristics of high efficiency and energy saving. It significantly reduces energy consumption and operating costs compared to traditional lifting equipment.

  ● It has a compact structure and a small footprint, enabling efficient hoisting operations in a limited space.

  ● It is easy to operate. Various operating functions can be realized through the flashlight door button, such as fast rise, fast fall, slow rise, slow fall, left and right rotation, and horizontal forward and backward walking, etc.

  ● Made of high-quality materials and advanced technology, it has high safety performance.

Application scenarios of I-beam jib crane

  ● On factory production lines, jib cranes can be used for material handling, assembly and maintenance operations. It can complete lifting tasks quickly and accurately and improve production efficiency.

  ● In warehouses and logistics centers, jib cranes can be used for loading, unloading, stacking and sorting of goods. Its flexibility and efficiency make cargo handling easier.

  ● On construction sites, jib cranes can be used for lifting and installing building materials. It can adapt to various complex construction environments and improve construction efficiency and quality.

  ● In equipment maintenance and installation sites, jib cranes can be used for lifting and installation of heavy equipment. Its powerful lifting capacity and stability make these operations safer and more reliable.

Need a column jib crane? Provide your on-site requirements and technical specifications, and contact our technical team for a free customized lifting solution.
