Maintenance of Polyurethane Conveyor Belt Cleaner

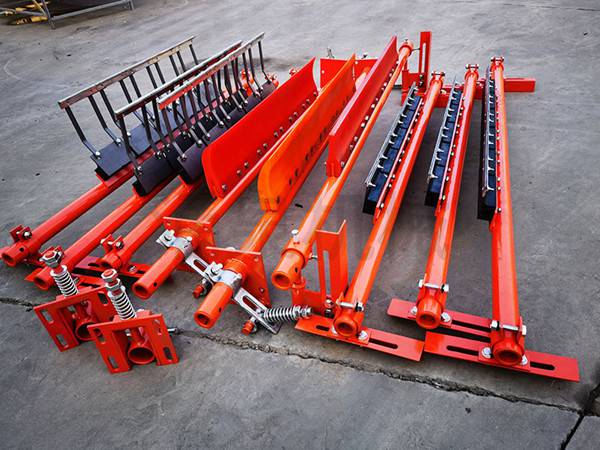

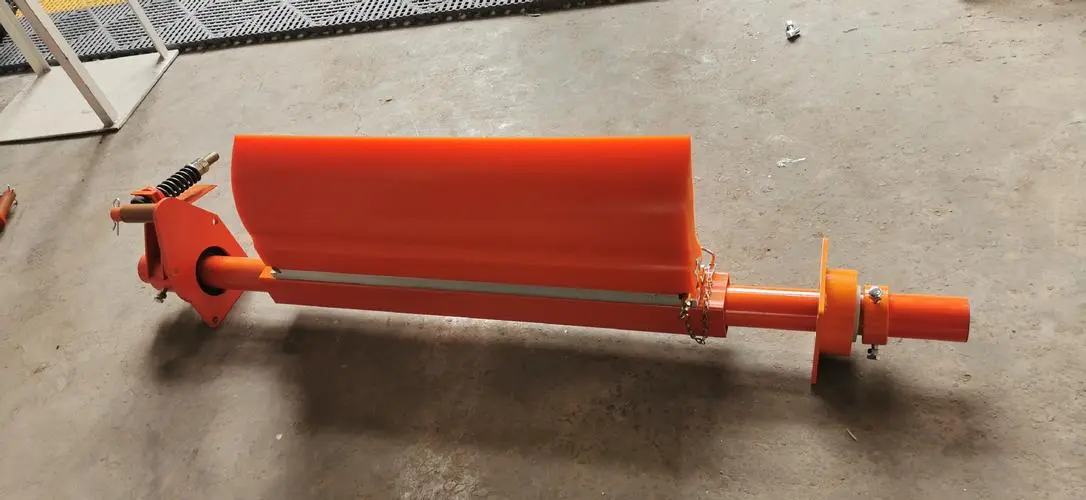

Polyurethane conveyor belt cleaners usually consist of a scraper system, an adjustment mechanism, a support frame and drive components. Its core component, the scraper, is mostly made of highly wear-resistant, self-lubricating polyurethane material. It has good flexibility and wear resistance and can closely fit the surface of the conveyor belt to effectively scrape off residual materials and moisture. The adjustment mechanism allows the position and angle of the scraper to be flexibly adjusted according to the different widths and wear conditions of the conveyor belt to ensure the cleaning effect. The support frame is responsible for fixing the scraper system and withstanding the forces generated during operation.

Polyurethane cleaners are widely used in conveying systems in electric power, metallurgy, mining, steel, petrochemical and other industries, and are important accessories on belt conveyors. It can effectively remove adherent materials on conveyor belts and prevent material residues from causing damage to conveyor belts and other equipment.

Common fault analysis

  ● The scraper wears too fast: The main reason is that the material contains hard particles or sharp edges, and long-term scraping causes rapid wear of the scraper surface. In addition, excessive pressure between the scraper and the conveyor belt may also accelerate wear.

  ● Poor cleaning effect: It may be caused by the loose fit between the scraper and the conveyor belt, loose adjustment mechanism, or improper selection of scraper material.

  ● Increased noise: Usually related to loose scraper, deformation of support frame or abnormal driving components.

  ● Material leakage phenomenon: When the edge of the scraper is damaged or there is a gap between the scraper and the conveyor belt, material leakage is likely to occur.

Maintenance methods

Regular inspection and cleaning

  ● Regularly check whether the cleaner equipment is operating normally, including checking the wear of the cutter head and whether the connecting parts are loose, etc. Problems found should be dealt with promptly to avoid the expansion of the fault.

  ● Regularly clean the residue, oil and debris on the surface of the conveyor belt and keep it clean and dry. This not only reduces frictional resistance and improves transmission efficiency, but also prevents contaminants from causing erosion and damage to the cleaner.

Correct way to use

  ● Choose the right cleaning method and avoid using cleaning agents or tools that may cause damage to your polyurethane sweeper.

  ● During use, avoid direct contact of the cleaner with the ground or other hard objects to prevent damage.

Maintenance and replacement

  ● Regularly check the working status and performance of the cleaning equipment to ensure that it is in good working order. If the cleaning effect is found to be reduced or the equipment is seriously damaged, it should be maintained and replaced in time.

  ● When replacing cutter heads or other wearing parts, accessories that match the original equipment should be used to ensure the normal operation of the equipment.

Storage and safekeeping

  ● When the cleaner is not in use, it should be stored in a dry, ventilated, non-corrosive gas environment, away from direct sunlight and rain.

  ● During storage, avoid contact with sharp objects to prevent scratching the surface of the cleaner.
