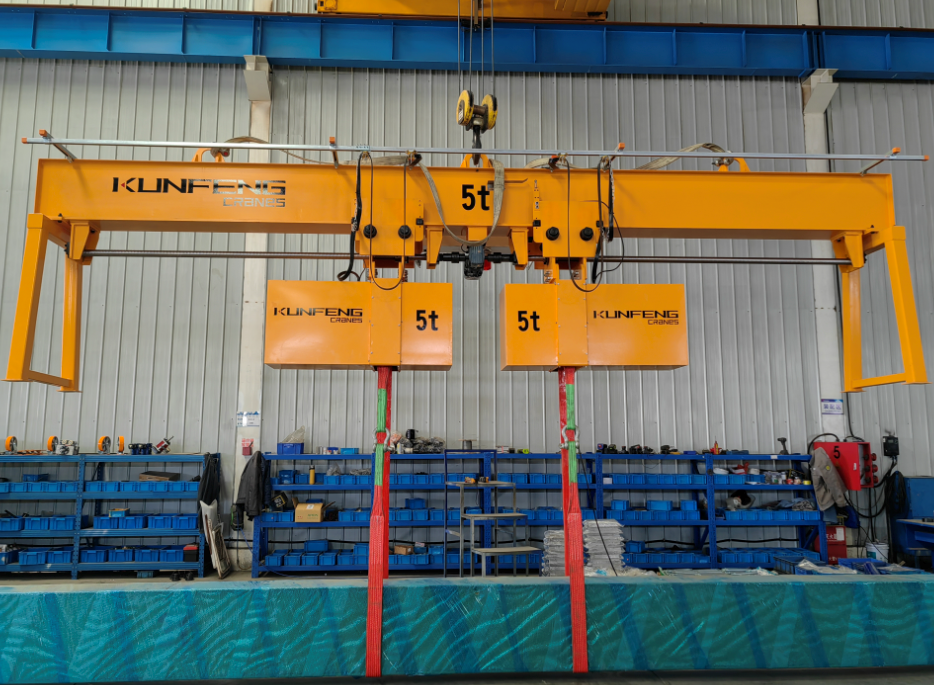

360 Degree Hanging Load Turning Device

A 360 degree hanging load turning device is an industrial device designed to rotate or flip a heavy load completely around its axis. The device is used in a variety of manufacturing and assembly processes to facilitate the handling, positioning and processing of large or heavy objects. It allows these objects to rotate a full 360 degrees without the need for manual handling.

Basic structure

  ● Rotating axis: The core component of the turning machine, usually a rotating axis or platform.

  ● Support Structure: A frame or bracket that supports the axis of rotation.

  ● Drive system: A motor or pneumatic device used to drive a rotating shaft.

Main features

  ● The core feature of this device is the ability to rotate the suspended load 360 degrees. This is usually achieved through a rotating platform or shaft driven by an electric motor, hydraulic system or pneumatic system.

  ● Use hooks, clamps, or other hanging devices to suspend the load from the equipment. The suspension system ensures that the load remains stable and safe during rotation.

  ● The device consists of a frame or support structure that secures and stabilizes the rotating mechanism and suspension system. This structure ensures the stability and safety of the equipment during operation.

  ● The equipment is equipped with controls to manage the rotational speed, direction and position of the load. Can be operated manually or via automated systems.

  ● Safety measures such as overload protection, emergency stop buttons and sensors are used to prevent accidents and ensure safe operation.

Application

  ● Automotive industry: used to rotate car bodies or components during assembly, welding, painting or inspection. This gives workers easier access to all sides of the vehicle.

  ● Heavy Machinery: Facilitates the assembly, maintenance and repair of large machinery by rotating parts into optimal positions.

  ● Shipbuilding: Assists in handling and assembling large ship parts by rotating them for better access and alignment.

  ● Manufacturing: Contributes to various manufacturing processes where heavy or bulky items need to be transferred to further processing, quality control, or packaging.
